| PASSPORT READERS & ID SCANNERS

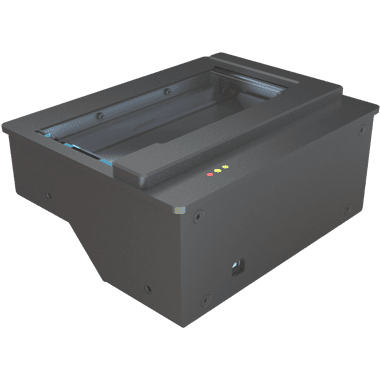

COMBO SCAN KIOSK ID SCANNER

Self-service ID verification in ultra-compact form, under 2 seconds

OVERVIEW

Smooth passenger flow and easy self-service operation – that’s what Combo Scan Kiosk is made for. This scanner extracts personal data from identity documents like passports, visas or ID cards within 2 seconds. As the name ‘kiosk’ suggests, integration with self-service kiosks, e-gates or vending machines is easy: due to the scanner’s low profile, ultra-compact rectangular form and mounting holes. All of these come with a clever design which includes no moving parts, to offer a truly maintenance-free operation.

This ID scanner allows intuitive usage, greatly improving passenger access or customer handling in those applications where checking identity documents is a must but there is no human staff attendance – especially in CUSS systems like airport e-gates, bank ATMs, self-service check-in kiosks and even vending machines where usage is restricted by age.

HIGHLIGHTED FEATURES

Ultra compact
Optical quality is maximized in the smallest possible volume, making it easy to integrate in any hardware.
Coverless design
The innovative Adaptive Light Control features lets the scanner work flawlessly even with strong external light being present.
MRZ reading
The scanner´s wide surface allows the reading of MRZ even from the ID-3 size passports.
usb-1266831_640 (1).jpg
Single USB powering
Steady operation even in such environments where there is no external power - a single USB is enough
Metal casing
A strong, durable and IP53-rated metal case protects the optical unit for long term usage.
Document placement guide
having the added document guide on top, users cannot do the scanning wrong.

Imaging is enhanced by our unique Adaptive Light Control feature, which secures steady operation even in environments with extreme light conditions. The software automatically detects and filters ambient light sources out to provide a flawless scanning performance. This is crucial both for accurate OCR and reliable authentication results.

About the self-service market

The self-service and automation market is one of the fastest growing sectors in the world: it’s expected to double in size in the next 5 years (prediction for 2024 using data and trendline from 2019).

Store Owner

Minimum volume for maximum integratibility

When designing this device, our developers have two main aspects in mind: to make the unit as compact as possible by reducing its size, while keeping our high standard for optical quality. In this tiny volume, Combo Scan Kiosk has a built-in optical unit with a mirror, infrared and visible illumination LEDs, controller and power unit, all in a full metal enclosure to provide extended durability.

airport-5445373_1920 (1).jpg

APPLICATION AREAS


E-gates


Check-in kiosks


ATMs


Access control turnstiles


Vending machines

SPECIFICATIONS

Ultra compact, USB-powered ID scanner

Type of installation

Integrated / bulit-in

Illumination sources

Visible white (430-700nm), Near IR B900

Ideal for integration with kiosks, eGates

Active scan area

125 mm x 55 mm

(4.92" x 2.17")

Supported document types

Passports, ID cards, Visas, Driver´s licenses, 1D & 2D barcodes

DOWNLOADS


Combo Scan Kiosk ID scanner Product Datasheet


Passport Readers & ID Scanners Complete Cathalogue


Install guide for Combo Scan Kiosk ID scanner
