| RECOGNITION CAMERAS AND DEVICES
LYNET MOBILE ANPR CAMERA
The Ultra-Compact Powerhouse for Vehicle Identification
Lynet, one of the smallest mobile ANPR cameras on the market, delivers exceptional performance and accurate readings on the move.
HIGHLIGHTED FEATURES
Single‑cable PoE+ installation
Power and data over one PoE+ connection for quick installs and minimal vehicle wiring.
Compact, rugged design (IP67)
Small, all‑metal housing for covert or tight installs; built for harsh mobile environments.
Onboard ANPR processing
Plate recognition runs on the camera, removing the need for external processors.
Carmen® ANPR on the edg
Proven Carmen® engine delivers real‑time plate and vehicle recognition directly on device.
Integrator‑friendly APIs
Simple PUSH and PULL interfaces for easy integration with existing systems.
Integrated IR illumination
Reliable plate capture day or night without additional external lighting.
APPLICATION AREAS
Law Enforcement & Police Patrol
Parking Enforcement
Traffic Enforcement (Mobile)
Traffic Monitoring & Smart Cities
Access Control & Vehicle Security
Covert & Discreet Surveillance
COMPARE MODELS
Lynet M504 (Tele)
Lynet M504 Zoom (Wide)
Maximum Resolution (HxV pixels): Framerate
2472x2048 (5 Mpx) : 30 fps
Shutter
Color, Global Shutter
Lens
Fixed
Motorized zoom and focus, remotely adjustable
Focal Length
12 mm
3-8 mm
Optical Zoom
-
2.6x
Angle of View (H×V)
31° × 21°
Zoom min: 68° × 51° / Zoom max: 38° × 28.5°
Optimal ANPR Range (at ambient light or at 0 lux)
5.5 m – 18.5 m (18 feet – 61 feet)
2 m – 15 m (6 feet – 50 feet)
Data Storage
128 GB (integrated), approx. 35.000 events
A New Era of Mobile ANPR | The World’s First Electric 2x2 LPR Platform

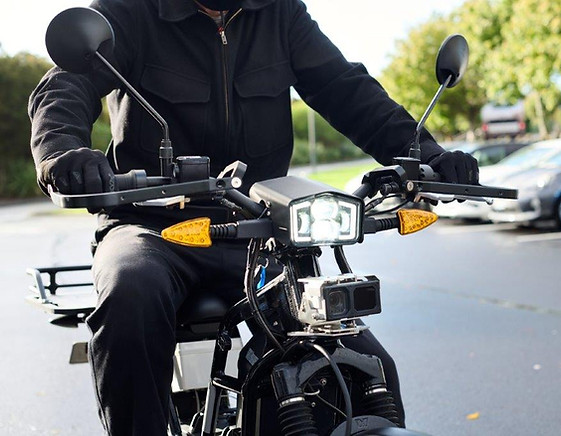

This project demonstrates Lynet’s flexibility in a world‑first fully electric, two‑wheel mobile ANPR platform built in New Zealand. By integrating the Lynet camera with a UBCO 2×2 electric utility bike, Image Analytics Pacific proved that reliable mobile ANPR and vehicle recognition can operate beyond traditional patrol cars, enabling low‑impact enforcement in areas such as campuses, pedestrian zones, car parks, and parks. The system delivered accurate, real‑time plate reads at speed, day and night, all from a compact, self‑contained, zero‑emissions platform.
INTEGRATION OVERVIEW
Edge Processing
Lynet is designed as a self‑contained mobile ANPR device. License plate recognition and vehicle data (make, model, colour, category) are processed directly on the camera using the onboard Carmen® ANPR engine. No central ANPR server or external processing hardware is required, making Lynet ideal for vehicle‑mounted and rapidly deployed systems.
Power and Connectivity
Lynet connects via Ethernet and is powered using PoE+, typically via an in‑vehicle router or PoE injector. This single‑cable approach simplifies vehicle installations and allows the camera to operate as part of a compact mobile system using 4G/5G backhaul, without fixed network infrastructure.
Event‑Driven Data Output
Recognition results are generated on the device and delivered as structured events rather than raw video streams. Plate reads and vehicle metadata can be pushed in real time or pulled on demand, enabling efficient integration with enforcement, parking, or monitoring platforms while minimising bandwidth usage.
System Integration
Lynet integrates directly with Adaptive Recognition software ecosystems and third‑party systems via well‑documented APIs and event streams. It is commonly deployed within mobile enforcement, parking, traffic monitoring, and fleet solutions, either as a standalone unit or as part of a wider multi‑device system.
