| RECOGNITION CAMERAS AND DEVICES
VIDAR ANPR CAMERA
Get rid of lengthy ANPR camera setup once and for all
All-in-one intelligent camera for ANPR/ALPR, Make & Model, and Hazardous Material Sign Recognition - with vehicle detection up to 320 km/h (200 mph). Capture every detail with unparalleled accuracy.
HIGHLIGHTED FEATURES
Powered by Carmen® ANPR + MMR
Full ANPR and vehicle make, model, colour and type recognition runs directly on the camera, removing the need for external processing or servers.
Unmatched Computing Capabilities
Dual 4‑core onboard CPUs allow simultaneous high‑FPS video streaming, ANPR, MMR, data delivery and remote access from a single device.
Multi‑Lane Coverage
A single camera can capture and process up to two lanes, reducing hardware, cabling and installation costs.
Stand‑Alone Vehicle Detection
Built‑in hardware and software triggers eliminate the need for external loops, radars or trigger devices.
Self‑Adjusting Imaging
Automatic zoom and focus adjustment using onboard gyroscope, accelerometer and laser data ensures consistent image quality over time.
Easy Integration
A clear, well‑documented API with PUSH and PULL data streams makes integration into existing platforms fast and straightforward.
APPLICATION AREAS
Access Control
Parking Systems
Stop-N-Go Tolling
Journey time measurement
Border Control
Congestion charging
Airport and harbour logistics
Bus lane and red light enforcement
Tolling Systems
Traffic security monitoring
COMPARE MODELS
Smart 5MpHDx LT
Smart 2xFHD LT
Smart 2xHDx LT
Smart 2xHDx LT IR760
Smart HDx
HDx LT W
HDx
Onboard ANPR
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Max Resolution for Sensor 1
5MP (2432×2048)
3MP (2048x1536)
1.5MP (1440x1080)
Max Resolution for Sensor 2
1.5MP (1440x1080)
3MP (2048x1536)
1.5MP (1440x1080)
No secondary sensor
Field of View
Camera 1:
Wide: 25° x 21°
Tele: 8° x 6° / Camera 2:
Wide: 56° x 43°
Tele: 3.4° x 2.5°
Camera 1 & 2:
Wide: 27° x 20°
Tele: 8° x 6°
Camera 1 & 2:
Wide: 56° x 43°
Tele: 3.4° x 2.5
Camera 1 &2:
Wide: 79° x 64°
Tele: 31° x 23°
Wide: 56° x 43° Tele: 3.4° x 2.5°
Zoom
Camera 1: 3.3x / Camera 2: 18x
Camera 1 & 2: 3.3x
Camera 1 & 2: 18x
Camera 1 & 2: 3x
18x
ANPR Range
10 m to 50 m
[33-165 feet]
10 m to 40 m
[33-130 feet]
4 m to 50 m
[13-165 feet]
1.5 m to 8 m
[5-26 feet]
4 m to 50 m [13-165 feet]
Lanes Covered
2
1
Laser Trigger
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Embedded Illumination
IR, 850 nm
IR, 760 nm
IR, 850 nm
White
IR, 850 nm
INTEGRATION OVERVIEW
On‑Camera Processing
Vidar performs ANPR and vehicle attribute recognition (make, model, colour, type) directly on the device using the onboard Carmen® engine. All recognition results are generated at the camera and are available as structured data for downstream systems.
Data Output and Interfaces
Recognition events, images and metadata are exposed via a documented API. Both PUSH (event‑driven) and PULL (request‑based) data access are supported, allowing integration with real‑time systems or central platforms as required.
Network and Power
Vidar uses standard Ethernet for connectivity and is powered via PoE. This supports straightforward installation and allows remote access for configuration, diagnostics and firmware updates once deployed.
Detection and Triggering
Vehicle detection and capture triggering are handled internally by the camera. No external loops, radars or trigger devices are required, reducing dependency on additional roadside hardware.
System Integration
Vidar can be integrated into parking, access control, traffic and transport systems as either a standalone data source or as part of a wider multi‑camera deployment. It is suitable for both new installations and integration into existing platforms.

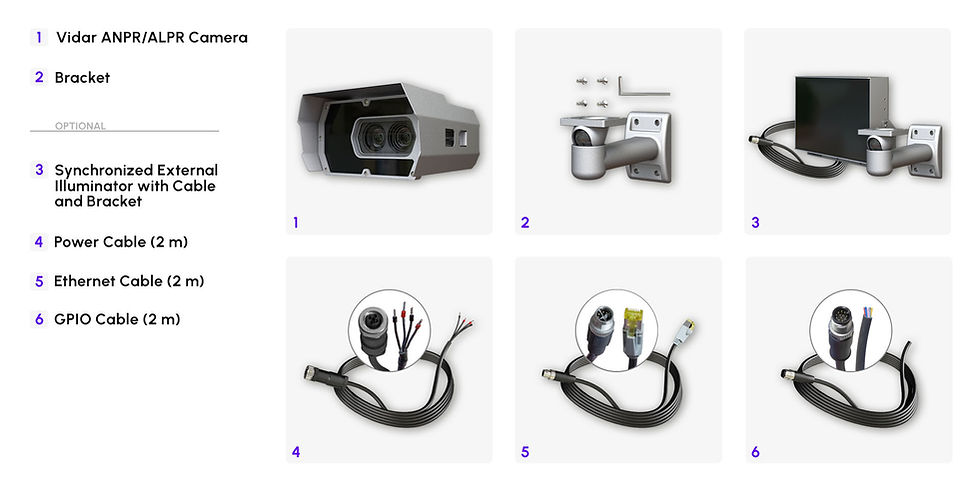

BASIC SET AND OPTIONAL ACCESSORIES
